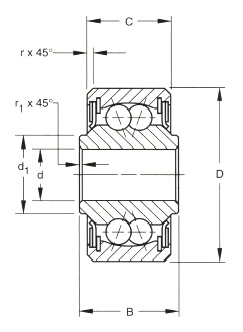

Bearing Number |
MS 27643 Dash No. |
Bore |
Outside Diameter |
Widths |
|||||
d |
D |
B |
C |
||||||
+0.0000,-.0005 +0.000,-.013 |
+0.0000,-.0005 +0.000,-.013 |
+0.000,-0.005 +0.00,-.13 |
+0.000,-.005 +0.00,-.13 |
||||||
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
||
DSP3 |
-3 |
0.1900 |
4.826 |
0.7774 |
19.746 |
0.500 |
12.70 |
0.392 |
9.96 |
DSP4 |
-4 |
0.2500 |
6.350 |
0.9014 |
22.896 |
0.687 |
17.45 |
0.464 |
11.79 |
DSP5 |
-5 |
0.3125 |
7.938 |
1.2500 |
31.750 |
0.812 |
20.62 |
0.656 |
16.66 |
DSP6 |
-6 |
0.3750 |
9.525 |
1.4375 |
36.512 |
0.937 |
23.80 |
0.750 |
19.05 |
DSP8 |
-8 |
0.5000 |
12.700 |
1.6875 |
42.862 |
1.000 |
25.40 |
0.812 |
20.62 |
DSP10 |
-10 |
0.6250 |
15.875 |
1.9375 |
49.212 |
1.125 |
28.58 |
0.937 |
23.80 |
| Bearing
Number
|
d 1 |
r 1 |
r |
Wt. |
Radial Limit Load Rating |
Thrust Limit Load Rating |
||||||
Approx. |
+.015,-.000 +.38,-.00 |
+.015,-.000 +.38,-.00 |
Approx. |
|||||||||
in. |
mm |
in. |
mm |
in. |
mm |
lbs. |
kg |
lbs. |
N |
lbs. |
N |
|
DSP3 |
0.304 |
7.72 |
0.005 |
0.13 |
0.022 |
0.56 |
0.04 |
0.018 |
1420 |
6400 |
200 |
900 |
DSP4 |
0.430 |
10.92 |
0.005 |
0.13 |
0.032 |
0.81 |
0.06 |
0.027 |
1780 |
8000 |
300 |
1340 |
DSP5 |
0.515 |
13.08 |
0.015 |
0.38 |
0.032 |
0.81 |
0.16 |
0.073 |
3740 |
16600 |
600 |
2650 |
DSP6 |
0.564 |
14.33 |
0.015 |
0.38 |
0.032 |
0.81 |
0.24 |
0.109 |
5100 |
22800 |
800 |
3550 |
DSP8 |
0.775 |
19.68 |
0.015 |
0.38 |
0.044 |
1.12 |
0.36 |
0.163 |
7120 |
31500 |
1000 |
4400 |
DSP10
|
0.869 |
22.07 |
0.015 |
0.38 |
0.044 |
1.12 |
0.53 |
0.240 |
9000 |
40000 |
1300 |
5850 |
(1) These bearings are self-aligning for 10° in either direction .
Note: These bearings should not be used as track rollers, cam follower rolls, and the like
